CLOSED TYPE PLATE
COMPACTOR
CVP90CG / CVP120CG (GASOLINE ENGINE TYPE)
CVP90CD / CVP120CD (DIESEL ENGINE TYPE)

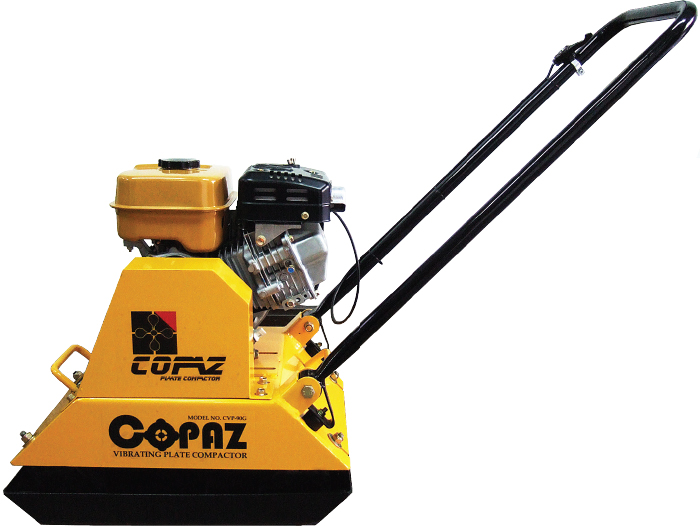

COMPACTOR CLOSED TYPE PLATE
CVP120CG / CVP120CD
CVP90CG / CVP90CD
ADVANTAGE
- Closed type of plate compactor prevent sand or soil entering into the machines.
- High centrifugal force most suitable for powerful compaction and performance.
- Heavy-duty shock-absorber reduce vibration to engine and handle.
USE
- Compacting soil, gravel, sand and aphalt.
OPTION
- Engine (Gasoline, Diesel)
AVAILABLE ENGINE
GX160 (5.5HP)
EX17 (6.0HP)
DY23 (4.5HP)

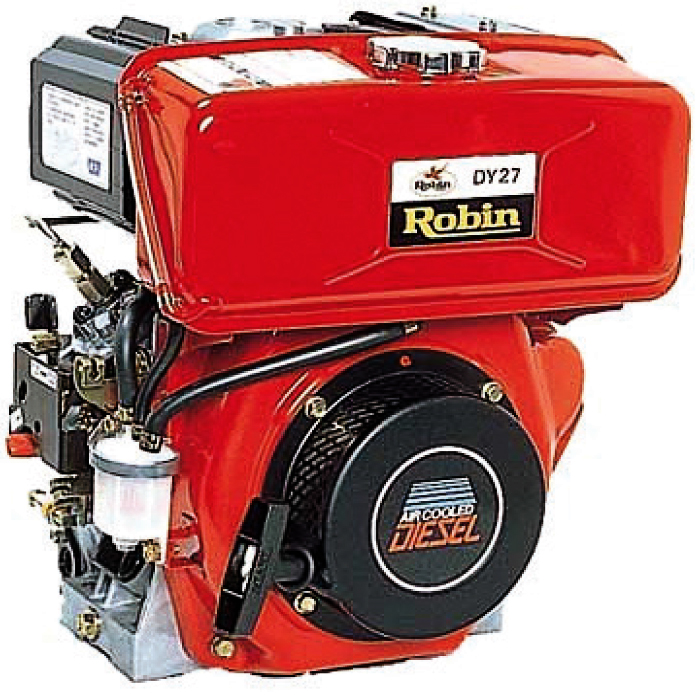

DY27 (6.0HP)
SPECIFICATIONS
| MODEL | CVP90CG | CVP120CG | CVP90CD | CVP120CD | |
|---|---|---|---|---|---|
| OPERATING WEIGHT | Kg / lb | 88 / 19 | 120 / 264 | 103 / 226 | 133 / 292 |
| DIMENSION (W) x (L) x (H) | mm / inch | 415×1,074×872 16.3×42.3×34.3 |
500×915×985 19.6×36.0×38.7 |
415×1,074×872 16.3×42.3×34.3 |
500×915×985 19.6×36.0×38.7 |
| PLATE SIZE | mm / inch | 415×545 / 16.3×21.4 | 500×600 / 19.6×23.6 | 415×545 / 16.3×21.4 | 500×600 / 19.6×23.6 |
| CENTRIFUGAL FORCE | KN / kgf | 17.7 | 23.5 | 17.7 | 23.5 |
| VIBRATION FREQUENCY | VPM | 6,000 | 6,000 | 6,000 | 6,000 |
| TRAVEL SPEED | m(ft) / min | 25 / 82 | 25 / 82 | 23 / 75 | 23 / 75 |
| COMPACTED AREA | ㎡ / hr | 625 | 750 | 687 | 825 |
| ENGINE | |||||
| BRAND | HONDA | ROBIN | ROBIN | ROBIN | |
| MODEL | GX160 | EX17 | DY27 | DY23 | |
| TYPE | AIR-COOLED 4-CYCLE | AIR-COOLED 4-CYCLE | |||
| FUEL | GASOLINE | DIESEL | |||
| OUTPUT | hp / kw | 5.5 / 4.125 | 6.0 / 4.5 | 6.0 / 4.5 | 4.5 / 3.375 |
| SPEED | rpm | 3,600 | 3,600 | 3,600 | 3,600 |
| TANK CAPACITY | l / gal | 3.6 / 0.95 | 3.6 / 0.95 | 3.2 / 0.84 | 3.2 / 0.84 |
| WEIGHT | kg / lb | 15 / 33 | 15 / 33 | 29.5 / 64.9 | 29.0 / 63.9 |
